#21224

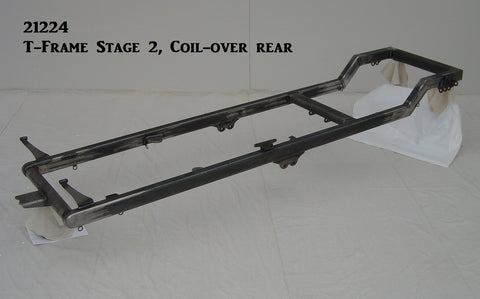

T-Frame, Stage 2, Coil-over Rear style.

STAGE 2 FRAME includes

• Frame with Front & Rear Crossmembers, (Stage 1)
• Front Spring Perch
• Motor Mount Frame Brackets
• Corvair Steering Box Mount, (Standard or Long Body style)
• Radius Rod Hangers with Gussets
• Transmission Crossmember with Drop-out Tabs
• Master Cylinder Bracket with Pedal Pivot & Gusset Tab
• Upper Rear Coil-Over Mounts
• Panhard Bar Mount Tab
• Front Shock Towers
• Brake Line Adapter Tabs (4), (Inverted Flare or AN style)

***Coil-over brackets location and Upper rear kick-length vary, (depending on 14” Bed, 20” Bed or Sportdeck), and change the Radius rod lengths and rear wheel location***

**Due to the extreme price increases on tubing, brackets and other supplies from vendors, our frames have gone up significantly. We are sorry for this, but it's out of our control**

Stage 2 Frames are built to order (to a specific Body, Bed, Motor/Trans and style of Radiator) and require at least 8 to 10 weeks lead time** (Frames can be will-called or shipped by Truck) contact CCR for more information and shipping quotes

 Printable T-Chassis & Body Parts List (prices on the PDF's are not correct)

Please call (909-393-4005) or Email (ccrhotrods@yahoo.com)
