Front Suspension
CLICK ON PART # FOR PRODUCT DETAIL
COMPLETE FAD "T" FRONT END ASSEMBLY Complete front axle assembly includes CCR's exclusive .250" wall, tight 4-bend, 5" drop axle with Multi- leaf front spring, custom '37-'41 Ford front spindles reamed and fit with new king-pins and custom bolt-on steering arms, tie rod, standard spring hangers, shackles, shackle hangers, radius rods, all spherical ends, bushings, nuts, and bolts. Axle measures 50" center to center at top of king-pins.
- 31058 • Complete Front End (with radius rods) $1590.00
- 31058C • Complete Front End, Chrome (with radius rods) $2790.00
- 31250 • Radius Rods, CCR Fronts, 51" (with all ends) pr. $299.95
- 31250C • Radius Rods, Chrome, CCR Fronts, 51" (with all ends) pr. $509.95
- 31252 • Radius Rods, Short Fronts, 27" (with all ends) pr. $259.95
- 31252C • Radius Rods, Chrome, Short Fronts, 27" (with all ends) pr. $469.95
- 31265 • Tie Rod (with all ends) $89.95
- 31265C • Tie Rod, Chrome, (with all ends) $165.95
- 31267 • Drag Link, Standard Body, (with all ends) $89.95
- 31267C • Drag Link, Standard Body, Chrome, (with all ends) $171.95
- 31269 • Drag Link, Long Body, (with all ends) $89.95
- 31269C • Drag Link, Long Body, Chrome, (with all ends) $171.95
_________________________________________________________
CUSTOM FRONT SPINDLES CCR's '37-41 Style Ford, Forged Front Spindles have our custom bolt-on Steering arms. These are designed to mount the tie rod on top and behind the spindle for proper geometry, better handling, clearance, and a much cleaner appearance up front. Spindles include Bushings fit & reamed
- 31041 • Forged Spindles & Arms pr $339.95
- 39006 • Forged Spindles (no arms) pr $245.95
- 31041C • Forged Spindles & Arms, Chrome pr $595.95
- 39006C • Forged Spindles, Chrome (no arms) pr $399.95
- 39057 • Spindle Nut/ Washer Set pr $15.95
- 39050 • King Pin Kit (early/round 37-41) pr $65.95
- 39050P • King Pin Kit, Polished S/S (round 37-41) pr $109.95
- 39052 • King Pin Kit (late/square 42-48) pr $65.95
- 39054P • King Pin Covers, Alum pr $29.95
Note: All Spindles come w/ bushings installed & reamed (king-pin kit, bearing & shims sold separately)
_________________________________________________________
CUSTOM BOLT-ON STEERING ARMS Brings your steering assembly on top and behind the axle, keeping your front end clean. When ordering, specify spindle mount or bolt-on style front wheels being used.
- 31500 •Custom Bolt-on Arm set, (Ford 37-48 spindles) pr $99.95
- 31500C • Custom Bolt-on Arm set, Chrome (Ford 37-48) pr $199.95
- (bolts on to stock or reproduction spindles)
- 31500-BK • Bolt Kit for steering arms, (GM style brake kit) kit $10.50
- 31500-BKC • Bolt Kit, Chrome, for steering arms, (GM style brake kit) kit $26.50
- 31500-BKWW • Bolt Kit for steering arms, (Wilwood style brake kit) kit $14.50
_________________________________________________________

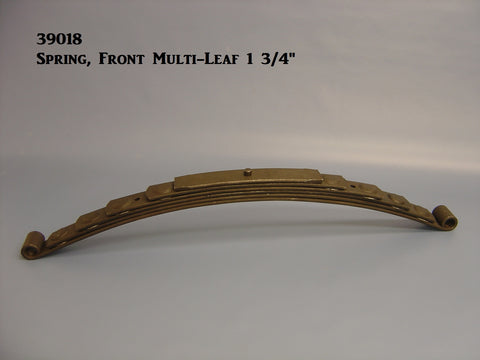

FRONT SPRINGS You can get CCR's great looking Multi-leaf spring or the new variable thickness, Mono-leaf spring.
- 39018 • Front Multi-Leaf Spring, (reversed eye) $165.95
- 39018C • Front Multi-Leaf Spring, Chrome, (rev eye) $395.95
-
39016 • Front Multi-Leaf Spring, (standard eye) $165.95
-
39016C • Front Multi-leaf Spring, Chrome, (std eye) $369.95
- 39017-HA • Front Multi-Leaf Spring, High Arch, $139.95
- 39021 • Mono-leaf Front Spring $269.95
- 39021C • Mono-leaf Spring, Chrome $395.95
- 39022 • Mono-leaf Spacers (set of 6) $29.95
- 39032 • Polyride spring tape, roll (black or clear) $14.95
- 39038-P • Spring Clamps 1 3/4", Polished S/S pr $24.95
- 39037 • Spring Clamps 1 3/4", Stainless Steel pr $18.95
FRONT SPRING PERCHES AND TOP PLATES
_________________________________________________________
FRONT AXLE CCR's own 2" x .250" wall, 5" drop axle is the tightest 4-bend axle available. Includes king pin bosses 100% Heli-arc welded in our jig. Measures 50" center to center at top of king-pins. Shown w/hangers.
- 31004 • Front Axle (early Ford Boss) $349.95
- 31008 • Front Axle (w/ standard hangers welded) $455.95
- 31008C • Front Axle, Chrome (w/ standard hangers welded) $749.95
- 31034 • T-Axle Bosses, 37-48 Ford pr $42.95
- 31020 • Front Axle, Custom (plain, no brackets) from $410.95
(allow 6-8 weeks for custom length axle) -- (early Ford bosses) _________________________________________________________
SPRING HANGERS Standard hangers are 3" longer (CCR standard), giving you a longer wheelbase for better ride & stability.
_________________________________________________________
FAD "T" FOUR-LINK FRONT END PARTS - You can now get the famous Fad 'T' front end with 4-Link suspension, using our custom batwings.
- 31014 • Four-Link Axle $599.95
- (Axle with 4-Link batwings welded in place)
- 31014C • Four-Link Axle, chrome $899.95
- (Axle with 4-Link batwings welded in place)
- 31257 • 4-Link Bar Kit (std body) kit $349.95
- 31259 • 4-Link Bar Kit (long body) kit $349.95
- (inc. bars, bushings, frame brkts., & hardware)
- 31029 • 4-Link Axle Batwings pr $199.95
_______________________________________________________
SUSPENSION HARDWARE & BUILDER MATERIALS -CLICK HERE
59818 • Rod End, Spherical, 5/8"-18 RH Male ea. $12.95
59818C • Rod End, Chrome, Spherical, 5/8"-18 RH Male ea. $15.95
59817 • Rod End, Spherical, 5/8"-18 LH Male ea. $12.95
59817C • Rod End, Chrome, Spherical, 5/8"-18 LH Male ea. $15.95
59820 • Clevis, 5/8"-18 RH Male, 3/8" slot & 1/2" hole ea. $11.95
59820C • Clevis, Chrome, 5/8"-18 RH Male, 3/8" slot & 1/2" hole ea. $14.95
CCR's Online Store is newly opened and we are adding more Quality parts daily. Please call (909-393-4005) or Email (ccrhotrods@yahoo.com) if there is something you were hoping to find but couldn't. If it is something we build or sell, we will get it on the site ASAP.
